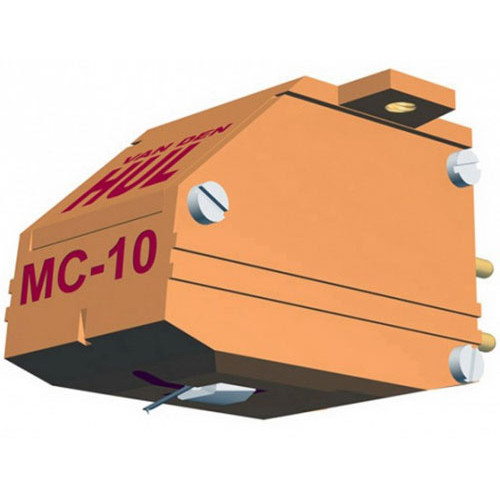

Phono cartridge Van den Hul MC-10 Special
MC-10 Special
Pre-Order
A manually made cartridge with a movable coil, a boron cantilever with a pure silver coil winding and with an output of 0.65 mV per channel.
The prefix "Special" in the name of the pickup head indicates important improvements compared to its previous version: the cartridge is equipped with a massive front base and a very small magnet, which together improve its resolution and output voltage.
Specifications
- Device Type Phono cartridge
- Recommended load resistance 200 кОм
- Downforce range 1.3 - 1.5 г
- Scope of delivery Деревянный бокс, жидкостный уровень, 2 винтика
- Channel separation > 35 дБ на 1 кГц
- Channel unbalance < 0.5 дБ
- Static compliance 28 мкм/мН
- Tracking angle 22°
- Equivalent weight of the needle tip 0.35 мг
- Output voltage 0.65 mV
- Cantilever material Бор
- Internal resistance 9 Ohms
- Mounting type Standard (half-inch)
- Type of plate Stereo
- Brand name of the sharpening Vdh - i
- Needle Type MC
- Needle sharpening radius 3 x 85 мкм
- The reliability of following the needle in the groove 70 - 80 мкм при 315 Гц
- Frequency response 5-50000 Гц
Dimensional parameters
- Weight 8.2 г
$1,607.00
- Pre-Order
- Product Code: MC-10 Special
- MC-10 Special
