2-channel Power Amplifier Monitor Audio IA800-2C

IA800-2C

Ends

Description
Specification

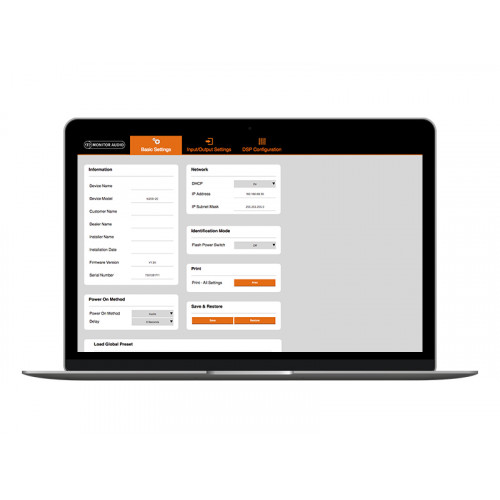

The IA800-2C is part of our Connect Amplifiers division, bringing our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

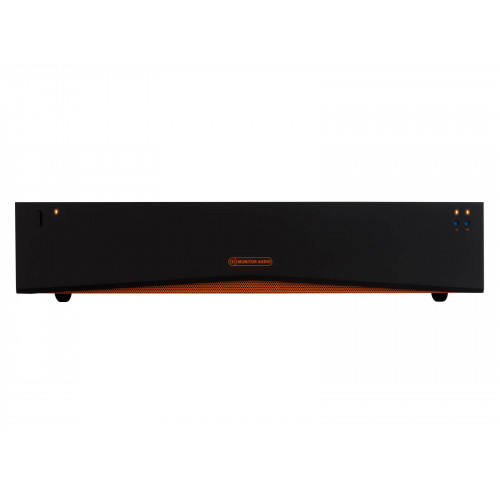

Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70 V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case universally fit into most racks whilst delivering 93% energy efficiency. And even though its likely to live its live on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Maximum Input Voltage 2.9 V
Input Sensitivity 100 mV / 1 W, 2200 mV – Full power
Output Impedance (Loop RCA) 600 ohms
Power (W / Channel)|70V 800 W
Power (W / Channel)|Bridge (8 ohms) 2000 W (1CH)
Sold As Single Unit
Power (W / Channel)|8 ohms 500 W
Channel Number 2 (1 Stereo Pair)
Power (W / Channel)|4 ohms 800 W
'Connect' IP Control Yes
Fuse Rating 100-120VAC: T15AL/250V AC220-240VAC: T10AL/250V AC
Mains Operating Voltage 100 –120 V @ 60 Hz220 – 240 V @ 50 Hz
Input Impedance 20 K ohms
Total harmonic distortion THD + N at 1 kHz 0.03%
Signal-to-noise ratio (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency response 5 Hz – 50 kHz

Dimensional parameters

Dimensions (Excluding Feet (HxWxD)) 86.8 x 438 x 438 mm (37/16 x 171/4 x 1613/16")
Rack Height 2U
Width (including rack brackets) 482 mm (19")
Weight 16 x 171/16")/4 x 1613/9.2 kg (20 lb 4 oz)/97.2 x 438 x 438 mm (313
