2-channel Power Amplifier Monitor Audio IA200-2C

IA200-2C

Pre-Order

Description
Specification

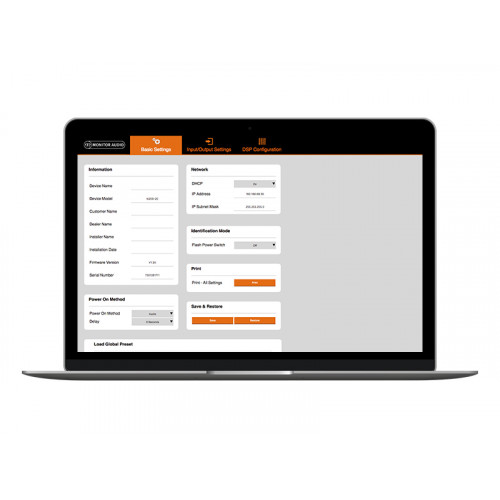

The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. As a Monitor Audio ‘Connect’ amplifier, it utilises our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Maximum Input Voltage 2.9 V
Input Sensitivity 100 mV / 1 W, 1230 mV – Full power
Output Impedance (Loop RCA) 600 ohms
Power (W / Channel)|70V N/A
Power (W / Channel)|Bridge (8 ohms) 470 W (1CH)
Sold As Single Unit
Power (W / Channel)|8 ohms 150 W
Channel Number 2 (1 Stereo Pair)
Power (W / Channel)|4 ohms 200 W
'Connect' IP Control Yes
Fuse Rating 5 A (T5AL ~ 250VAC)
Mains Operating Voltage 100 – 120 V @ 60 Hz220 – 240 V @ 50 Hz
Input Impedance 20 K ohms
Total harmonic distortion THD + N at 1 kHz 0.03%
Signal-to-noise ratio (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency response 5 Hz – 50 kHz

Dimensional parameters

Dimensions (Excluding Feet (HxWxD)) 42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16")
Rack Height 1U
Width (including rack brackets) 482 mm (19")
Weight 16 x 171/16")/4 x 1613/5.3 kg (11 lb 10 oz)/52.8 x 438 x 427 mm (21
