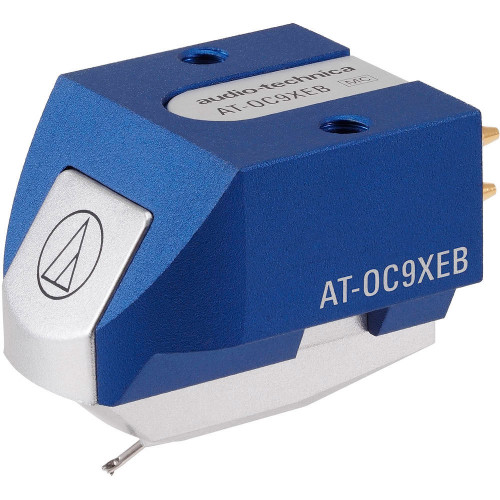

Phono cartridge Audio-Technica AT-OC9XEB

Name: Phono cartridge Audio-Technica AT-OC9XEB
Brand: https://soundslife.art/en/audio-technica
SKU: AT-OC9XEB
Availability: InStock

AT-OC9XEB

Pre-Order Specify the price

Description
Specification

Since its introduction more than 30 years ago, the innovative series of Audio-Technica OC9 cartridges with a movable coil has been appreciated by both demanding listeners of vinyl players and professional critics for musical transparency, the purest signal transmission and perfect channel separation.

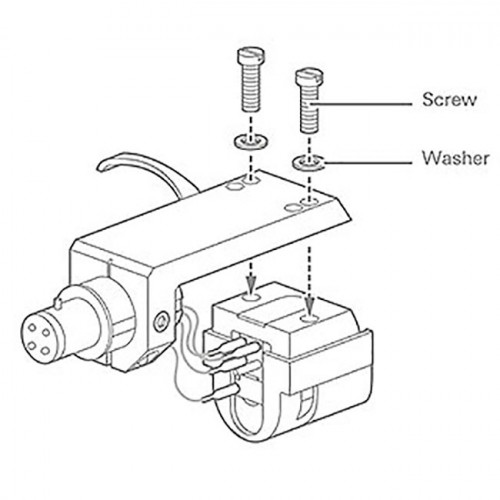

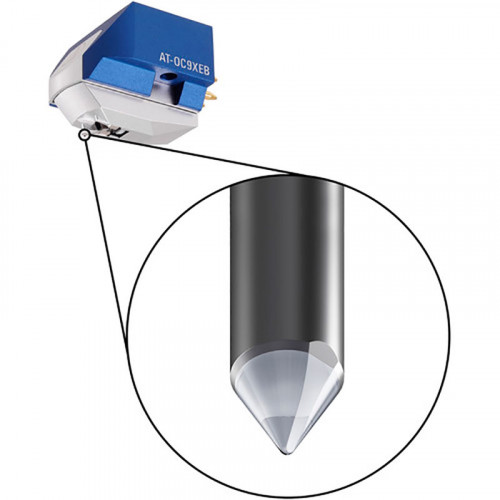

These characteristics were achieved thanks to the use of OCC (single crystal copper) in coils, optimization of their location and the use of a pure iron magnetic core. The Audio-technica AT-OC9XEB model is equipped with an elliptical-sharpened glued needle and is ready for playback right out of the box - the screw mount and the included screws and tools guarantee the fastest and most intuitive installation of the cartridge.

Specifications

Device Type Phono cartridge
Recommended load resistance 100 Ом
Downforce range 1.8 - 2.2 г
Optimal downforce 2.0 г

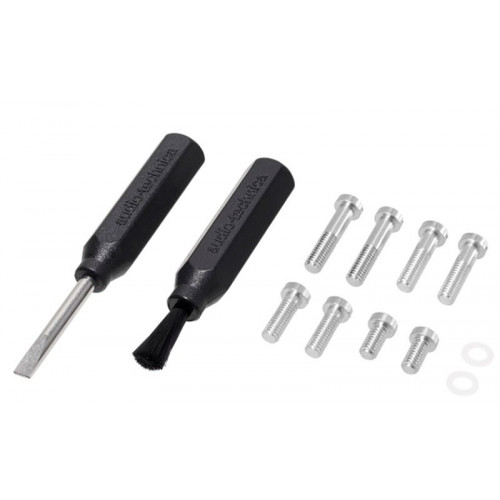

Scope of delivery Немагнитная отвертка, 2 шайбы, щёточка для чистки иглы, защитный колпачок, немагнитные винты для установки картриджей (2 х M2.5 х 5 мм, 2 х M2.5 x 8 мм, 2 х M2.5 x 10 мм, 2 х M2.5 x 12 мм)
Channel separation 25 дБ (1 кГц).
Dynamic compliance 9 x 10-6 cm/din (100 Hz)
Channel unbalance 1.5 дБ
Static compliance 20 x 10-6 см/дин
Tracking angle 20°
Type of needle sharpening Эллиптическая
Output voltage 0.32 mV
Cantilever material Алюминиевая трубка
Height 17.3 mm
Mounting type Standard (half-inch)
Type of plate Stereo
Brand name of the sharpening Elliptical Bonded
Needle Type MC
Needle sharpening radius 0.3 x 0.7 mil
Housing material Алюминий
Frequency response 20 Гц - 30 000 Гц
