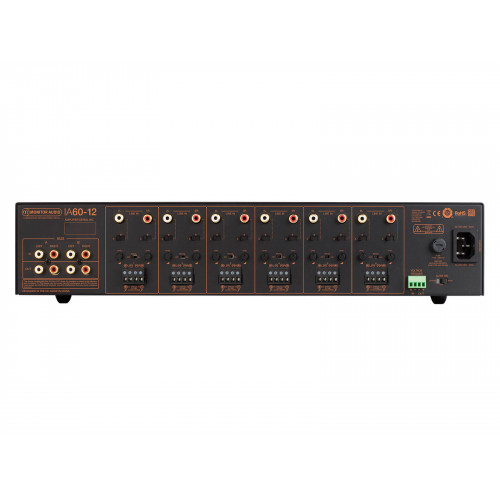

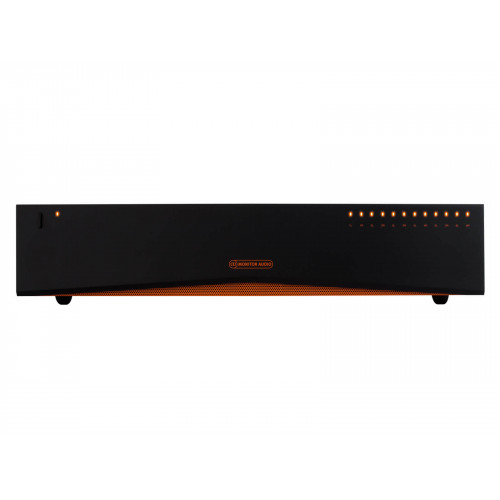

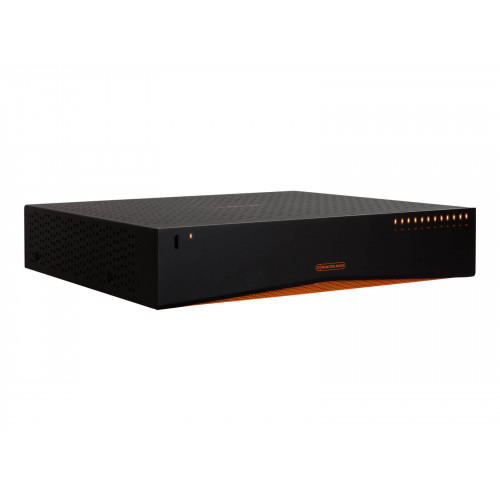

6-channel power amplifier Monitor Audio IA60-12

IA60-12

Pre-Order

Description
Specification

From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully your project.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Maximum Input Voltage 2.9 V
Input Sensitivity 100 mV / 1 W, 700 mV – Full power
Output Impedance (Loop RCA) 600 ohms
Power (W / Channel)|70V N/A
Power (W / Channel)|Bridge (8 ohms) 100 W (6CH)
Sold As Single Unit
Power (W / Channel)|8 ohms 45 W
Channel Number 12 (6 Stereo Pairs)
Power (W / Channel)|4 ohms 60 W
'Connect' IP Control N/A
Networked Standby Power Consumption N/A
Fuse Rating 10 A (T10AL ~ 250VAC)
Mains Operating Voltage 100 –120 V @ 60 Hz220 – 240 V @ 50 Hz
Input Impedance 20 K ohms
Total harmonic distortion THD + N at 1 kHz 0.03%
Signal-to-noise ratio (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency response 5 Hz – 50 kHz

Dimensional parameters

Dimensions (Excluding Feet (HxWxD)) 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16")
Rack Height 2U
Width (including rack brackets) 482 mm (19")
Weight 16 x 171/16")/4 x 1613/7.34 kg (16 lb 2 oz)/97.2 x 438 x 427 mm (313
