2-channel Power Amplifier Monitor Audio IA40-3

IA40-3

Ends

Description
Specification

Ideal for smaller environments, the IA40-3 Installation Amplifier will perfectly power in-ceiling speakers in a kitchen, loft room or bedroom. It also works beautifully when paired with Monitor Audio smaller bookshelf speakers in a bedroom, study or sitting room.

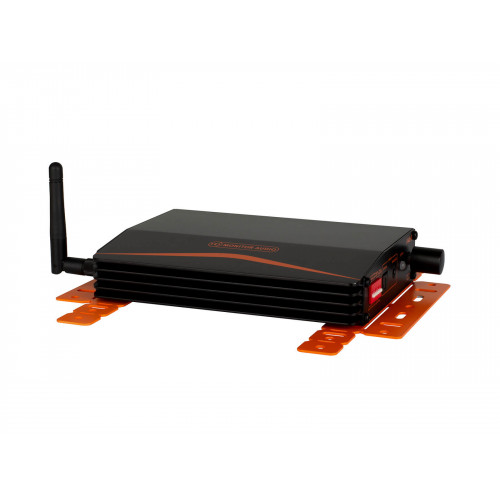

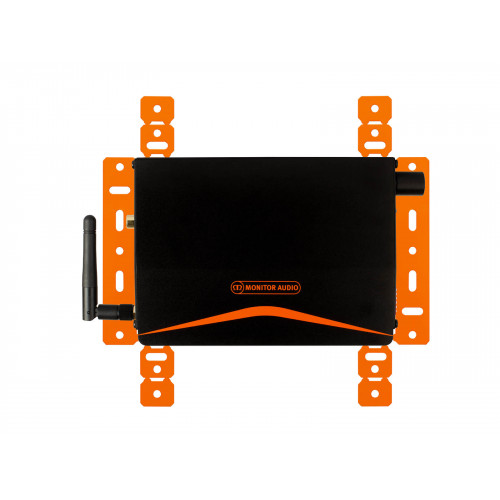

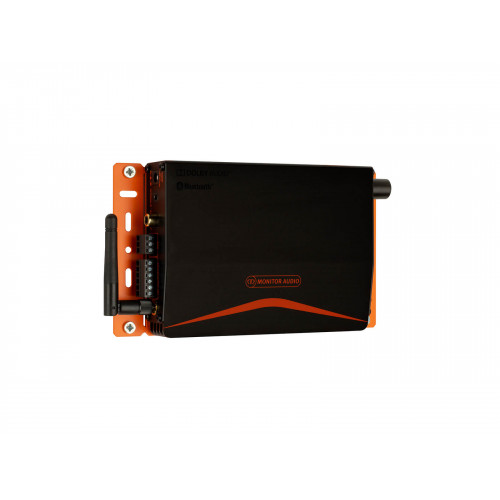

Best of all, if there is a television in the setup, the IA40-3 can be mounted behind the screen – using the supplied bespoke bracket – to drive a Monitor Audio Passive Soundbar. (The customisable brackets can be bent to fit and have flexible break-off sections for maximum installation versatility.)

With 40 W of power over three channels at 4 ohms, or 60 W over two channels, the IA40-3 will drive speakers or passive soundbars to deliver a lively and precise sound.

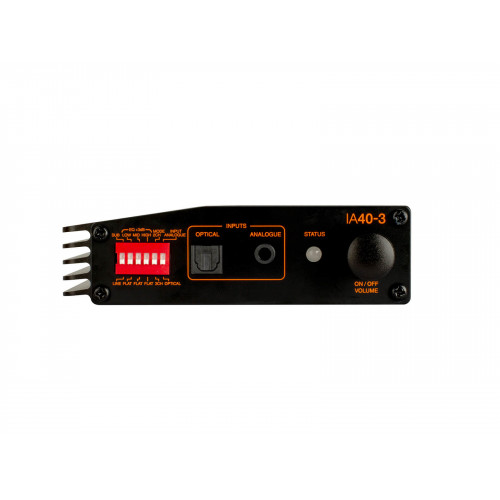

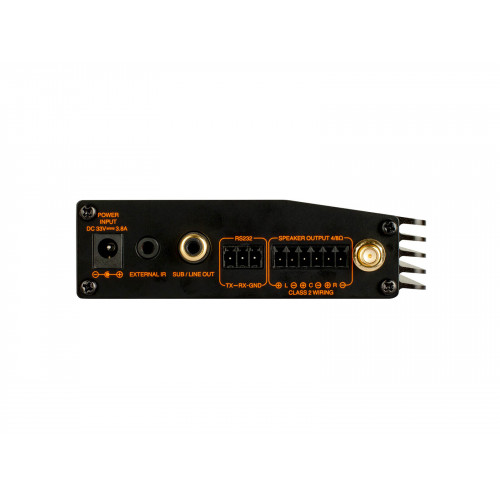

If extra bass is required, an active subwoofer can be connected to the IA40-3 via the sub/line out. Whatever the audio source, this is an amplifier with all the right connections. The IA40-3 features optical and analogue inputs and the latest Bluetooth® wireless technology, powered by Qualcomm® aptX^TM Audio, to allow easy and superior pairing with mobile devices. The IA40-3 has been designed to be discreetly tucked away and its unique heatsink fin allows cooling in the tightest of spaces.

Designed for modern living, the IA40-3 is Monitor Audio’s versatile solution when superior sound is required in custom install projects.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Maximum Input Voltage 2.3 V
Audio Codec SBC, Apt-X
Input Sensitivity 300 mV - Full Power
Power (W / Channel)|8 ohms|1 kHz 50 W @ 1% THD+N for 2 Channel30 W @ 1% THD+N for 3 Channel
Bluetooth Version 4.1
EQ The EQ dip switches apply a 3 dB boost at 120 Hz, 1500 Hz, and 8 kHz.
Power (W / Channel)|4 ohms|1 kHz 60 W @ 1% THD+N for 2 Channel40 W @ 1% THD+N for 3 Channel
Sold As Single Unit
Bluetooth Range with Antenna (line of sight) > 20m
Frequency Response (+-0.5dB) @ 1W 10 Hz – 20 kHz
Number of Output Channels 3
Output Impedance (Sub/Line Out) 1.47k
Fuse Rating 3 A
Mains Operating Voltage 100-240 VAC, 50/60Hz
Input Impedance 10k Unbalanced
Signal-to-noise ratio (SN:R) > 84 dB Unweighted

Dimensional parameters

Weight (incl. amplifier, RS232 terminal block, speaker terminal 0.484 kg
Dimensions (Including Mounting Brackets (HxWxD)) 32.6 x 196 x 182.5 mm (15/16x711/16x 73/16")
Dimensions (Excluding Mounting Brackets and Antenna (HxWxD)) 31.4 x 180 x 110.5 mm (11/4x 71/16x 43/8")
