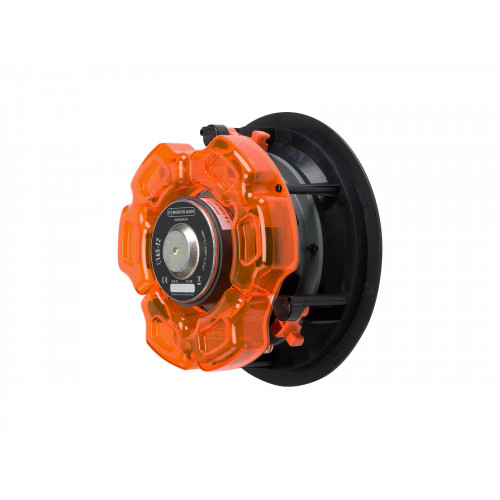

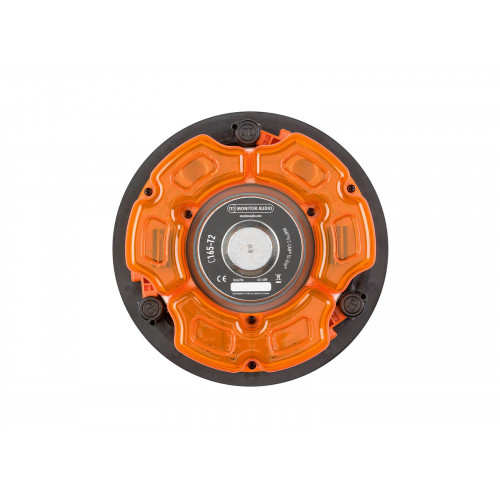

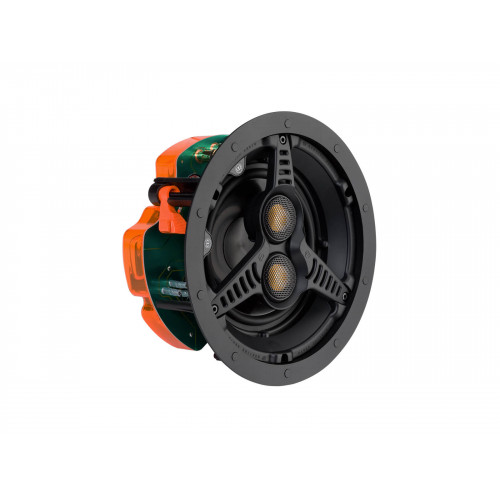

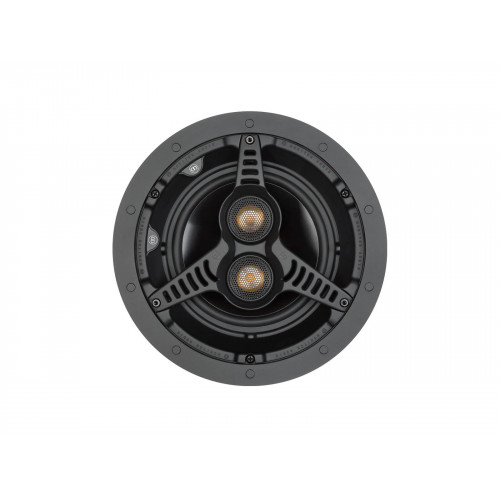

In ceiling speaker system Monitor Audio Core C165-T2

Specifications

• Recommended Amplifier Requirements 20 – 65 W
• Construction Material Mineral filled ABS, RoHS compliant
• Power Handling (RMS) 65 W
• Nominal Impedance 6 + 6 ohms
• Sold As Single Unit
• Back Box CCBOX-R|CMBOX-R
• Pre-Construction Bracket CB6 Pre-Construction Bracket (Purple)
• Drive Unit Complement 6 1/2" MMP II cone bass driver2 x 1" C-CAM pivoting Gold Dome tweeters
• Maximum SPL 107.9 dBA
• Sensitivity (1W@1M) 88.5 dB
• Mounting type 3 position Tri-Grip dog fixings
• Frequency response 60 Hz – 25 kHz

Dimensional parameters

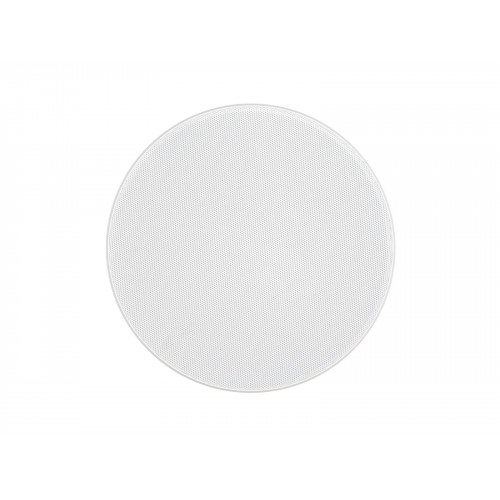

• Optional Square Grille - Outer Dimensions 249 x 249 mm (9 3/16")
• Mounting Depth 116 mm (49/16")
• Overall Depth (Including Grille) 120 mm (43/4")
• Overall Diameter (Including Grille) 250 mm (913/16")
• Cut-Out Hole Diameter 211 mm (81/4")
• Weight 2.08 kg (4 lb 10 oz)
