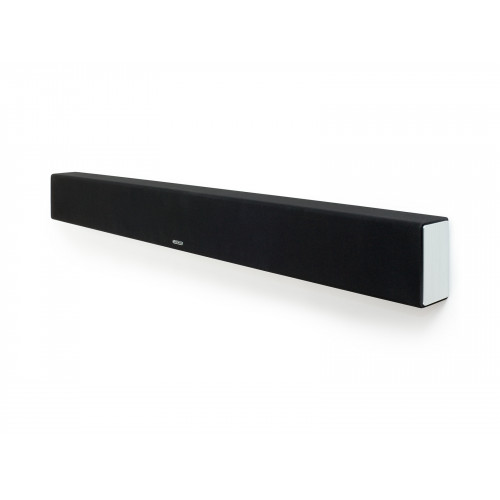

Speaker System Monitor Audio SB-4 Passive Soundbar

SB-4

Pre-Order

Description
Specification

The SB-4 incorporates a series of clever technical features and design innovations which demonstrate Monitor Audio’s revered attention to detail and commitment to quality.

Ease of installation is another key advantage of the SB-4. High quality, low profile binding posts provide an easy and trouble free connection, with the terminals recessed neatly to enable a flush to wall installation. The terminal panel also houses standard fixing points compatible with SANUS TV mounts, with many options for TV and wall installation. Wall mounting is also possible using Monitor Audio’s low-profile wall mount bracket with cable access, easy pre-alignment and fixing template.

The SB-4 is designed to be used with a partnering sub-woofer and crossed over to provide the best possible experience and increased system power handling. Alternatively, the soundbar can be used independently to deliver an impressive uplift in TV audio performance with only a slightly reduced power handling.

This product is now available to use with home theatre design software, The CEDIA Designer.

Technology

All MDF construction. Internally braced for additional rigidity
Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet
Wrap around acoustically open, black cloth finish with solid brushed Silver aluminium end trims – provides stealthy appearance for perfect placement near a TV
Neat terminal panel with high quality, low profile gold plated binding post terminals
High quality crossovers utilising polypropylene capacitors and low loss laminated steel core inductors
Designed to fit SANUS TV mounting systems
Optional sturdy wall bracket with cable hole access and template installation
Low profile Silicon rubber feet integrated for secure cabinet top placement

Specifications

Crossover Frequency 80 — 120 Hz
Recommended Amplifier Requirements 30 – 100 Watt
Power Handling (RMS) 80 W
Nominal Impedance 8 ohms
Sold As Single Unit
Bracket BSB
Drive Unit Complement All Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Maximum SPL 104 (108.8 all channels driven)
Bass Alignment Left and Right Channels: 1 x Auxiliary Bass Reflex (ABR) Loading.Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Sensitivity (1W@1M) 87 dB
Frequency response (-3 dB) 70 Hz – 30 kHz
System Power Management (RMS) 100 (High pass filter set to 100 Hz)

Dimensional parameters

External dimensions (including bracket (HxWxD)) 145 x 1562 x 100 mm (53/4 x 611/2 x 315/16")
Body dimensions: (HxWxD) (including legs) 147 x 1562 x 92 mm (513/16 x 611/2 x 35/8")
Weight 12 kg (26 lb 7 oz)
