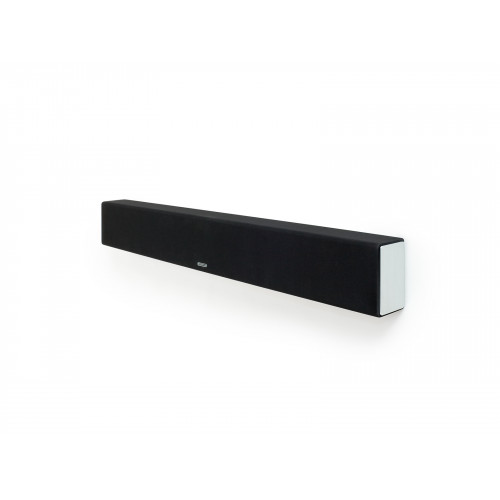

Speaker System Monitor Audio SB-2 Passive Soundbar

SB-2

Pre-Order

Description
Specification

The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.

In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.

This product is now available to use with home theatre design software, The CEDIA Designer.

Technology

C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
C-CAM gold dome tweeters per channel
Auxiliary Bass Reflex (ABR) per channel
Three separate driver arrays for left, centre, right channels in a single cabinet
Optional dedicated wall bracket
Integrated Silicon feet provide a secure cabinet-top mounting alternative.

Specifications

Crossover Frequency 80 — 120 Hz
Power Handling (RMS) 40 W
Nominal Impedance 8 ohms
Sold As Single Unit
Bracket BSB
Recommended Enclosure 30 — 100 W
Drive Unit Complement 3 x 4" (100 mm) C-CAM cone bass/mid driver3 x 1" (25 mm) C-CAM Gold Dome tweeter
Maximum SPL 104 (108.8 all channels driven)
Bass Alignment 3 x Auxiliary Bass Reflex (ABR) Loading
Sensitivity (1W@1M) 84 dB
Frequency response (-3 dB) 90 Hz – 30 kHz
System Power Management (RMS) 100 (High pass filter set to 100 Hz)

Dimensional parameters

External dimensions (including bracket (HxWxD)) 145 x 1107 x 100 mm (511/16 x 439/16 x 315/16")
Body dimensions: (HxWxD) (including legs) 147 x 1107 x 93 mm (513/16 x 439/16 x311/16")
Weight 7.64 kg (16 lb 12 oz)
