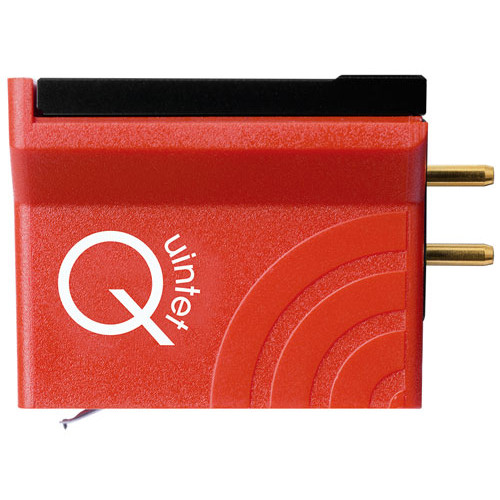

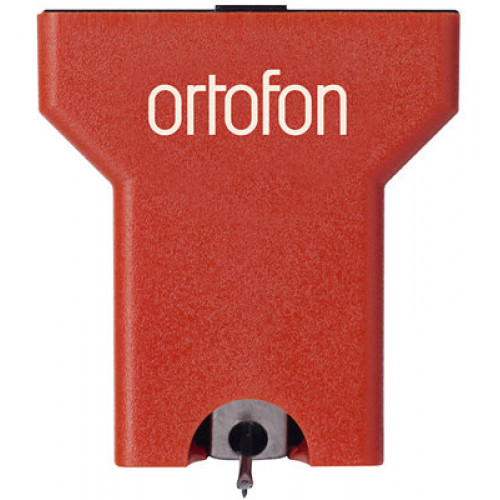

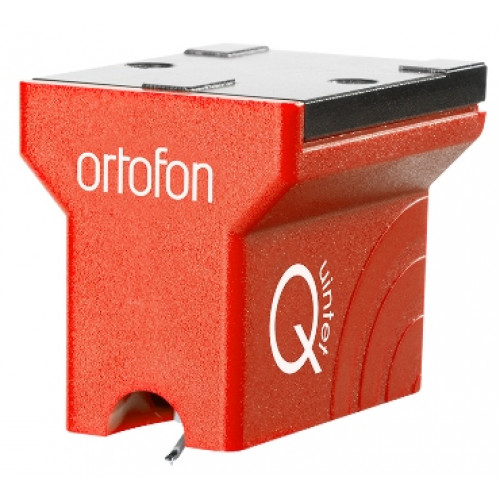

Phono cartridge Ortofon MC Quintet Red
The MC Quintet Series cartridges are a direct result of Ortofon's ongoing research and innovation.
Quintet Series cartridge cases are made of aluminum and special ABS (Acrylonitrile/Butadiene/Styrene) - thermoplastic material. Neodymium magnets are used in the MC Quintet Series to achieve optimal output. The low internal resistance makes the cartridge less sensitive to load and thus ensures compatibility with a wide range of pre-amplifiers and trasformers.
Ortofon MC Quintet Red outputs a signal of 0.5 mV, operates in the frequency range of 20 Hz - 25,000 Hz and has a diamond needle with elliptical sharpening. This is a universal head that can be used to upgrade middle-class vinyl players by replacing their regular MM pickups.
Specifications
- Device Type Phono cartridge
- Recommended load resistance > 20 Ом
- Downforce range 2.1 - 2.5 г
- Optimal downforce 2.3 г
- Channel separation > 21 дБ на частоте 1 кГц, > 14 дБ на частоте 15 кГц
- Dynamic compliance 15 microns / mN
- Channel unbalance < 1.5 дБ
- The frequency range of the level is -3 dB 20 - 25000 Hz
- Tracking angle 20 °
- Type of needle sharpening Эллиптическая
- Output voltage 0.5 mV
- Internal resistance 7 Ohms
- Mounting type Standard (half-inch)
- Brand name of the sharpening Elliptical
- Needle Type MC
- Needle sharpening radius 8/18 мкм
- Housing material Алюминий и полимер ABS
- The reliability of following the needle in the groove 65 мкм при 315 Гц
Dimensional parameters
- Weight 9 г
