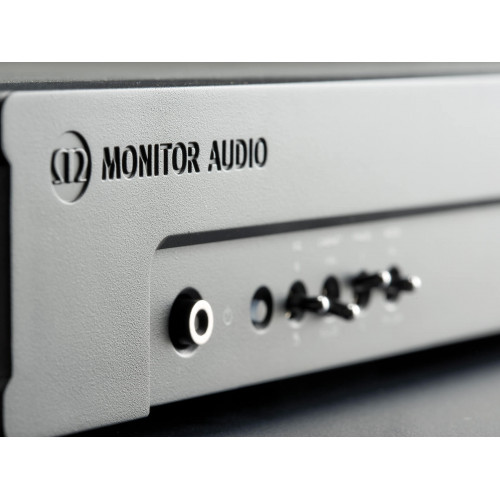

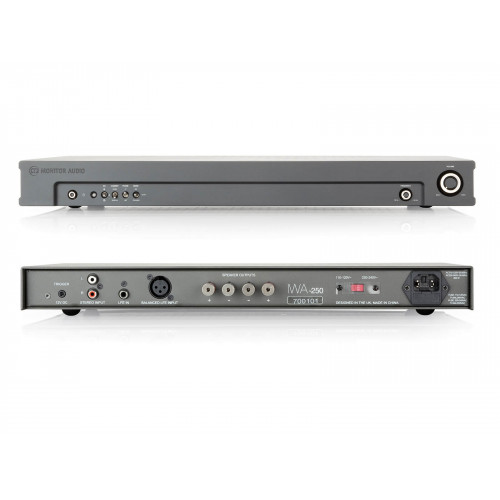

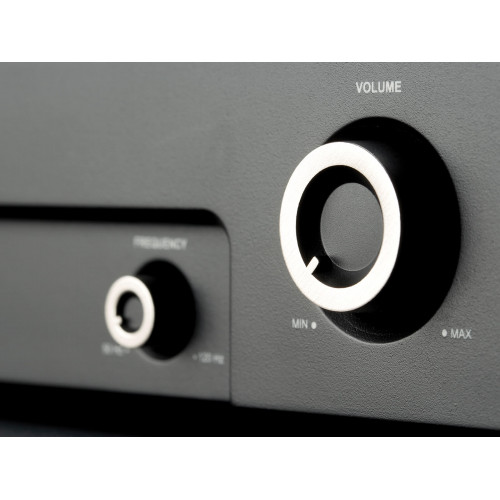

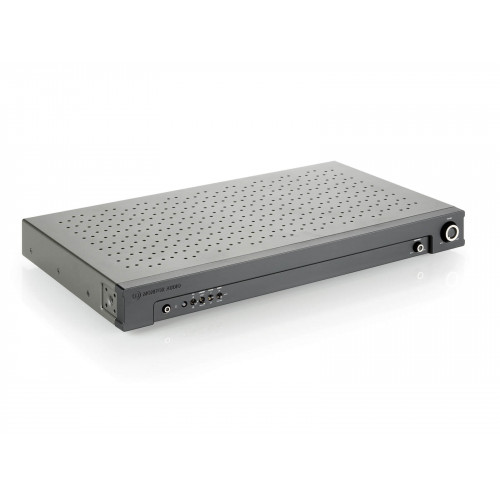

2-channel Subwoofer Power Amplifier Monitor Audio IWA-250

IWA-250

Ends

Description
Specification

Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.

This product is now available to use with home theatre design software, The CEDIA Designer.

Technology

Rigid, high quality steel case
Switch mode power supply
Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
High efficiency design resulting in cool running – low thermal output
DSP controlled with advanced limiters
<0.5watt standby power consumption (ErP certified)
DC short circuit protection, over-current and thermal protection

Specifications

Trigger Input 5 - 12v via 3.5 mm mono mini-jack socket
Amplifier Classification Class D amplifier with Switch mode power supply (SMPSU)
Automatic detection Line Level > 3.5mV
Amplifier Output 250 W @
Cabinet Support For use when using the dedicated back box
Input Level Requirements Standby after approximately 15 minutes if no signal sensed
Phase Control 0 & 180 degrees
Upper frequency limit Variable 40 – 120 Hz @ 24 dB/Octave
EQ Music/ Movie/ Impact
Lower Frequency Limit 25 Hz
Sold As Single Unit
Power Consumption Standby:
System Format Active sub-woofer amplifier
Mains Input Voltage AC 110 - 120 V 50/60Hz AC 220 - 240 V 50/60Hz (Factory Region Preset)
Drive Unit Complement 4 – 8 ohms

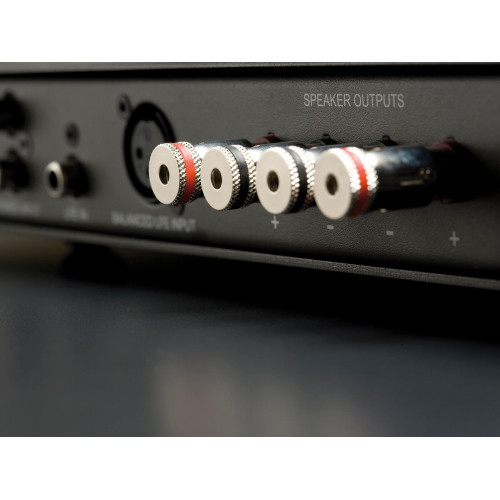

Connection LFE in (Stereo RCA and Balanced), 12v Trigger in (3.5 mm mono mini-jack), left and right speaker output
Input Impedance > 20K ohms
