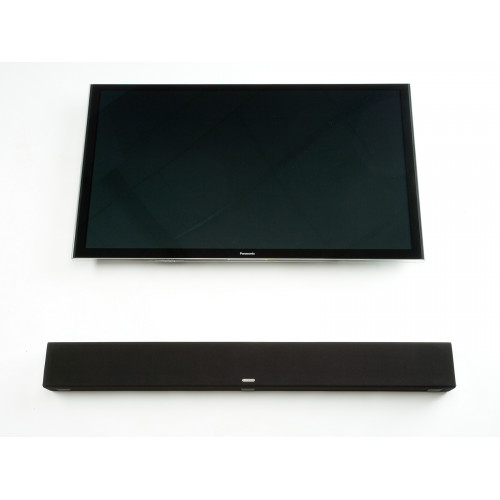

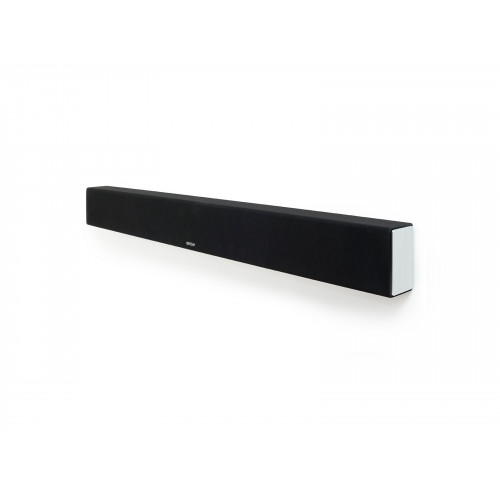

Speaker System Monitor Audio SB-3 Passive Soundbar

SB-3

Pre-Order

Description
Specification

Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.

This product is now available to use with home theatre design software, The CEDIA Designer.

Technology

Individual C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
C-CAM gold dome tweeters per channel
Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel
Three separate driver arrays for left, centre, right channels in a single cabinet
Optional dedicated wall bracket
Integrated Silicon feet provide a secure cabinet-top mounting alternative.

Specifications

Crossover Frequency All Channels: 80 — 120 Hz
Recommended Amplifier Requirements All Channels: 30 — 100 W
Power Handling (RMS) Left and Right Channels: 40 WCentre Channel: 80 W
Nominal Impedance 8 ohms
Sold As Single Unit
Bracket BSB
Drive Unit Complement Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter Centre Channel: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Maximum SPL 104 (108.8 all channels driven) dBa
Bass Alignment Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Sensitivity (1W@1M) Left and Right Channels: 84 dB Centre Channel: 87 dB
Frequency response (-3 dB) All Channels: 80 Hz – 30 kHz
System Power Management (RMS) All Channels: 100 (High pass filter set to 100 Hz)

Dimensional parameters

External dimensions (including bracket (HxWxD)) 145 x 1307 x 100 mm (511/16 x 517/16 x 315/16")
Body dimensions: (HxWxD) (including legs) 147 x 1307 x 93 mm (513/16 x 517/16 x 311/16")
Weight 9.1 kg (20 lb)
