Speaker System Monitor Audio Monitor 50

Monitor_50

Description
Specification

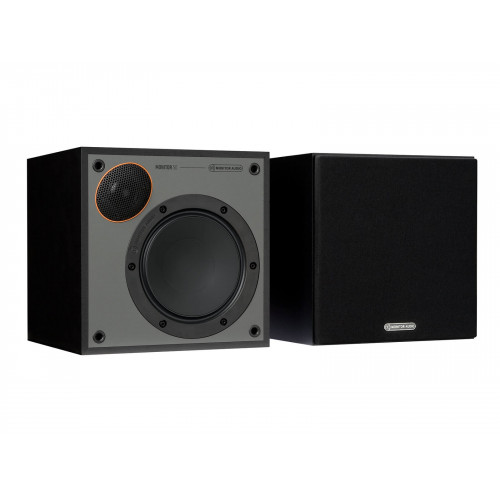

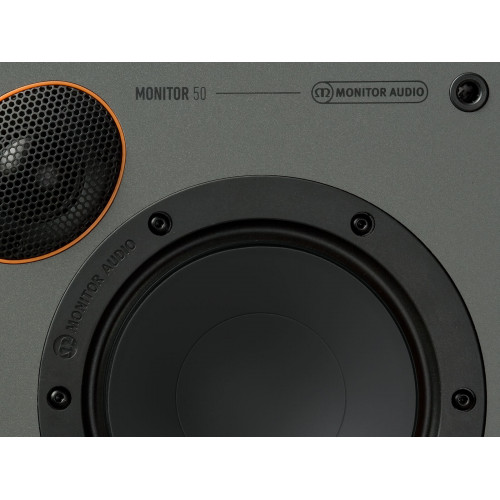

The Monitor 50's modern square cabinets complement the 5^1/2" MMP II drivers and 25 mm black C-CAM tweeters. By placing the tweeters in the top corner of the speakers, Monitor Audio has been able to reduce the size of the cabinet and give a unique appearance.

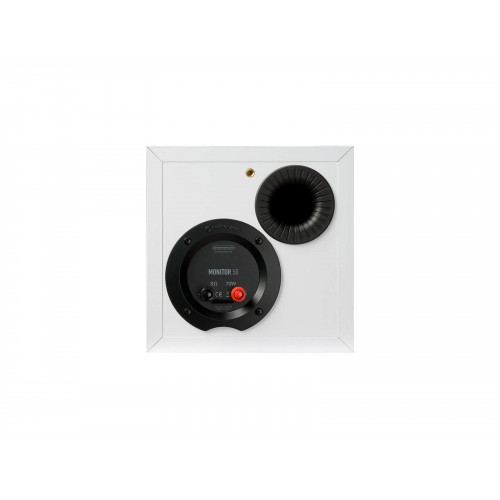

The compact dimensions, driver technology and rear port allow the speakers to perform in the most confined locations. As the cabinet is rear ported, the output is well damped and is suitable for placement close to a wall. A single set of high quality gold plated binding posts provide the connections for a suitable amplifier. The Monitor 50s certainly sound bigger than they look.

This product is now available to use with home theatre design software, The CEDIA Designer.

Monitor Key Features

Classic Monitor Audio speaker design with a playful twist
MMP II (Metal Matrix Polymer) driver cones
High overall impedance (8 ohms) – easy to drive with lower power amplifiers
Black C-CAM (Ceramic-Coated Aluminium Magnesium) dome tweeter – derived from Monitor Audio’s award-winning Bronze series
Creative use of 5^1/2" and 6^1/2" drivers have delivered a compact bookshelf, floorstand model together with larger bookshelf and floorstander to complement larger rooms and higher power applications
HiVe II (High Velocity, Low Noise Reflex Port) technology – for an improved transient response and tighter bass, due to smoother airflow

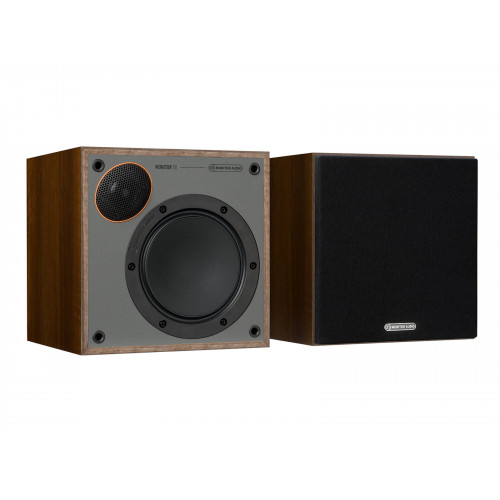

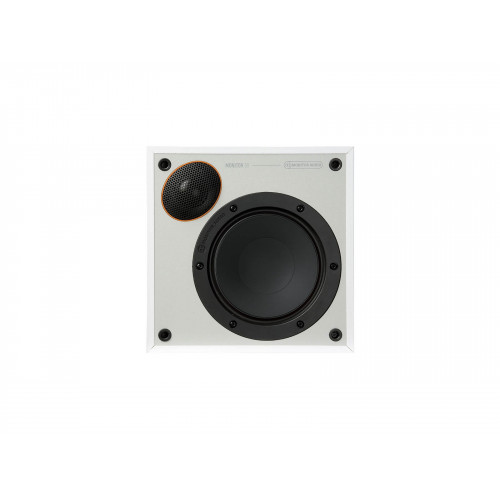

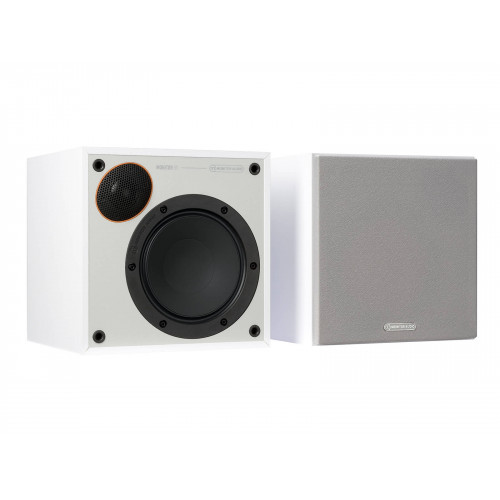

Black, white or a walnut finish, with contrasting grey baffle
Can be wall-mounted using Monitor Audio FIX-M Speaker Mount, utilising its rear fixing point

Specifications

Crossover Frequency 2.8 kHz
Recommended Amplifier Requirements 15 – 70 W
Power Handling (RMS) 70 W
Nominal Impedance 8 ohms
Sold As Pair
System Format 2 Way
Cabinet Design Rear ported bass reflex with HiVe II port technology
Drive Unit Complement 1 x 51/2" MMP II bass mid-range1 x 25 mm black C-CAM tweeter
Maximum SPL 109 dBA
Sensitivity (1W@1M) 87 dB
Frequency response 55 Hz – 30 kHz

Dimensional parameters

External dimensions (including grille and legs (HxWxD)) N/A
External dimensions (including grid (HxWxD)) 206 x 206 x 237.8 mm (81/3.56 kg (7 lb 14 oz)/8 x 81/8 x 93/8")
Weight 3.56 kg (7 lb 14 oz)
