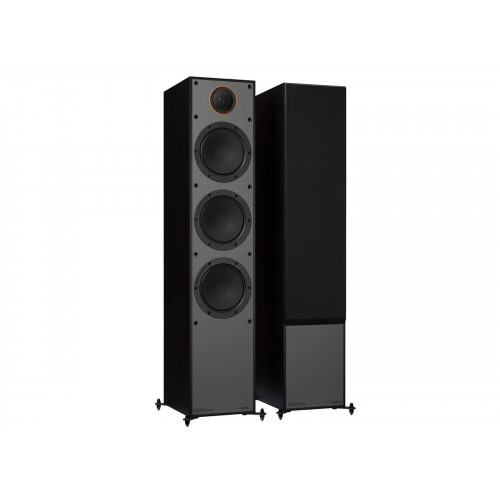

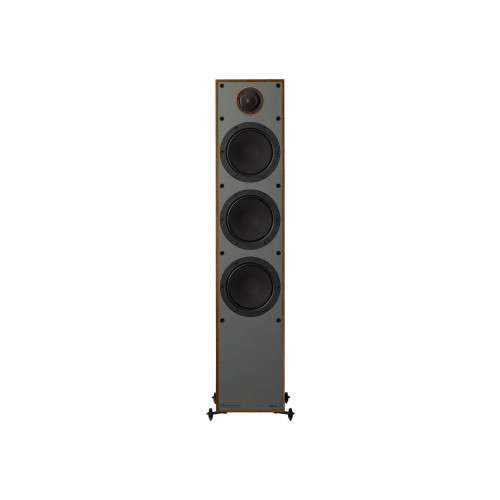

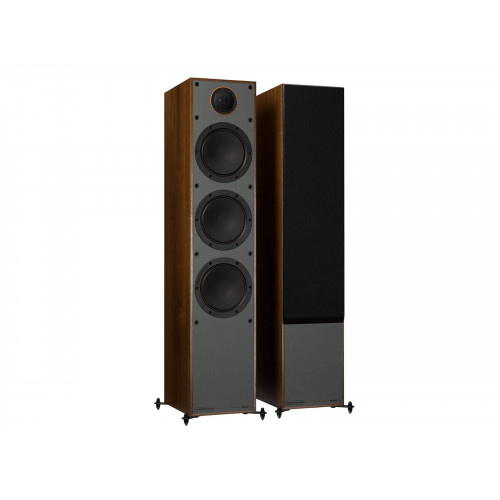

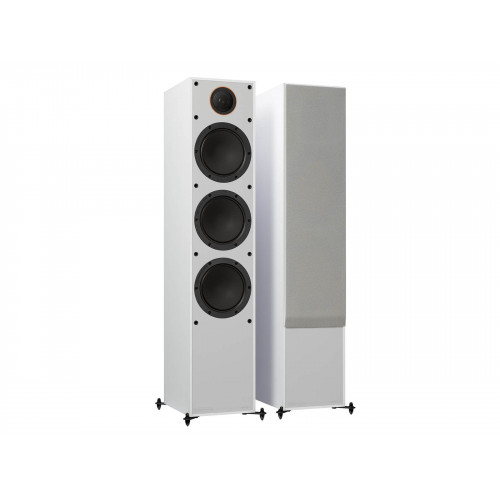

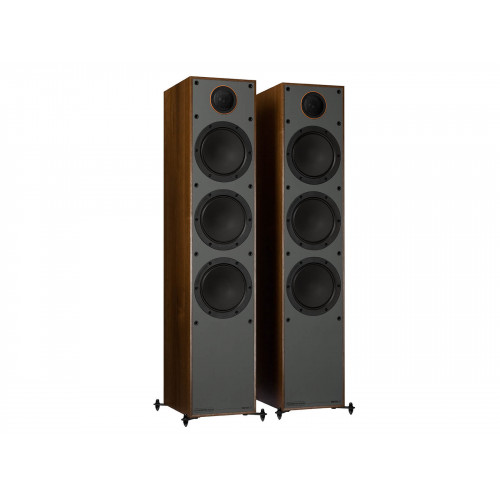

Speaker System Monitor Audio Monitor 300

Monitor_300

Description
Specification

The Monitor 300s are the top-of-the-range speaker and have been designed to give maximum power and performance. Their cabinets house three 6^1/2" MMP II bass drivers: two dedicated to bass and one to mid-range frequencies.

The dedicated mid-range driver delivers the clarity and precision expected from a serious hi-fi speaker, and adds the necessary warmth to create an immersive musical and cinema experience. The larger driver and cabinet size produce the scale and punch that is recommended for optimum performance in medium to large rooms.

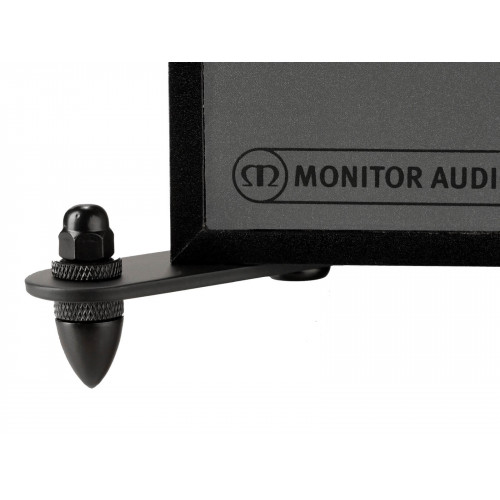

The Monitor 300s are equipped with outrigger feet that give a sleeker appearance, take up less floor space and improve the stability of the speaker.

This product is now available to use with home theatre design software, The CEDIA Designer.

Monitor Key Features

Classic Monitor Audio speaker design with a playful twist
MMP II (Metal Matrix Polymer) driver cones
High overall impedance (8 ohms) – easy to drive with lower power amplifiers
Black C-CAM (Ceramic-Coated Aluminium Magnesium) dome tweeter – derived from Monitor Audio’s award-winning Bronze series
Creative use of 5^1/2" and 6^1/2" drivers have delivered a compact bookshelf, floorstand model together with larger bookshelf and floorstander to complement larger rooms and higher power applications
HiVe II (High Velocity, Low Noise Reflex Port) technology – for an improved transient response and tighter bass, due to smoother airflow
Black, white or a walnut finish, with contrasting grey baffle
Outrigger feet on floorstanding models deliver a sleeker appearance, takes up less floor space and improves stability

Specifications

Crossover Frequency LF: 700 HzMF/HF: 3.3 kHz
Recommended Amplifier Requirements 40 – 150 W
Power Handling (RMS) 150 W
Nominal Impedance 8 ohms
Sold As Pair
System Format 21/2 Way

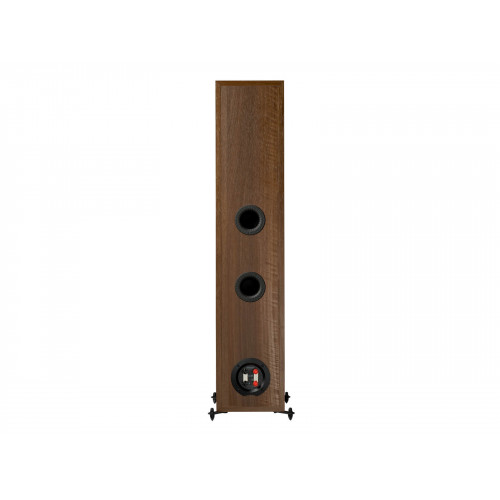

Cabinet Design Dual chamber, rear ported bass reflex with HiVe II port technology
Drive Unit Complement 2 x 61/2" MMP II bass1 x 61/2" MMP II bass mid-range1 x 25 mm black C-CAM tweeter
Maximum SPL 115 dBA
Sensitivity (1W@1M) 90 dB
Frequency response 35 Hz – 30 kHz

Dimensional parameters

External dimensions (including grille and legs (HxWxD)) 993 x 252.9 x 318.9 mm (391/8 x 915/16 x 129/16")
External dimensions (including grid (HxWxD)) 13.66 kg (30 lb)/16 x 1113/16 x 715/16")/970 x 201 x 299.3 mm (383
Weight 13.66 kg (30 lb)
