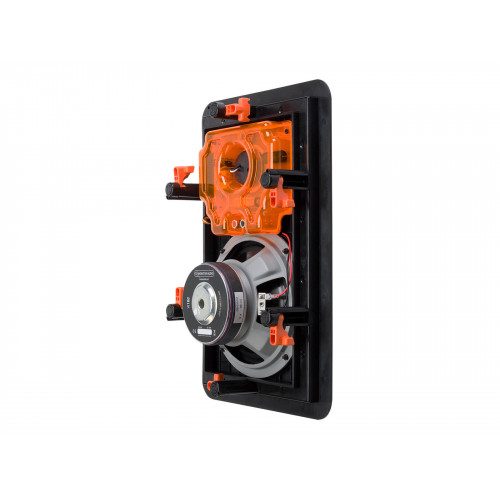

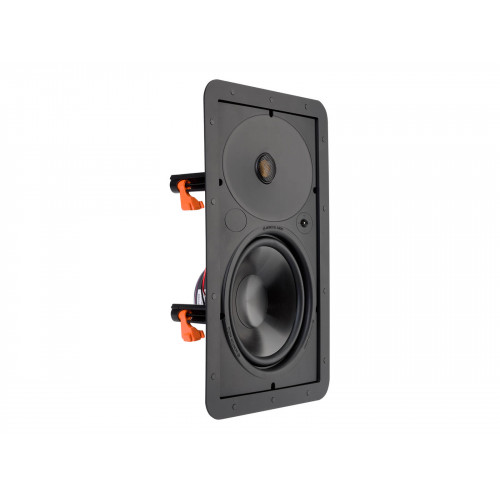

Wall-mounted speaker system Monitor Audio Core W180
W180
Ends

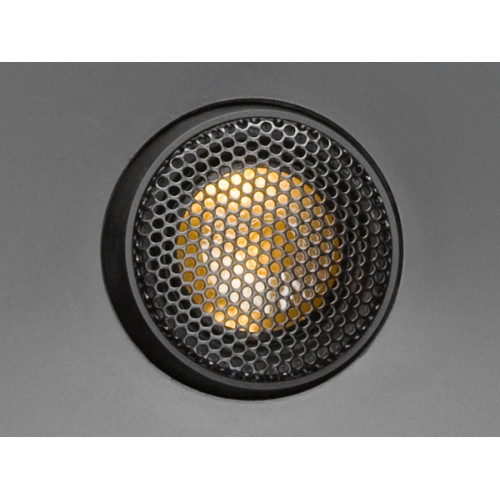

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
This product is now available to use with home theatre design software, The CEDIA Designer.
Specifications
- Recommended Amplifier Requirements 30 – 120 W
- Construction Material Mineral filled ABS, RoHS compliant
- Power Handling (RMS) 120 W
- Adjustment control HF Level Switch (+3 dB / 0 dB / -3 dB)
- Nominal Impedance 6 ohms
- Sold As Single Unit
- Back Box WCBOX-L
- Pre-Construction Bracket WB8 Pre-Construction Bracket (Green)
- Drive Unit Complement 8" MMP II cone bass driver1" C-CAM Gold Dome tweeter
- Maximum SPL 111.6 dBA
- Sensitivity (1W@1M) 90 dB
- Mounting type 6 position Tri-Grip dog fixings
- Frequency response 50 Hz – 25 kHz
Dimensional parameters
- Mounting Depth 100 mm (315/16")
- Overall Depth (Including Grille) 104 mm (41/8")
- Overall Diameter (Including Grille) 441 x 288 mm (173/8 x 115/16")
- Cut-Out Hole Diameter 387 x 234 mm (151/4" x 93/16")
- Weight 3.08 kg (6 lb 12 oz)
$280.00
- Quantity is limited
- Product Code: SCW180
- W180
