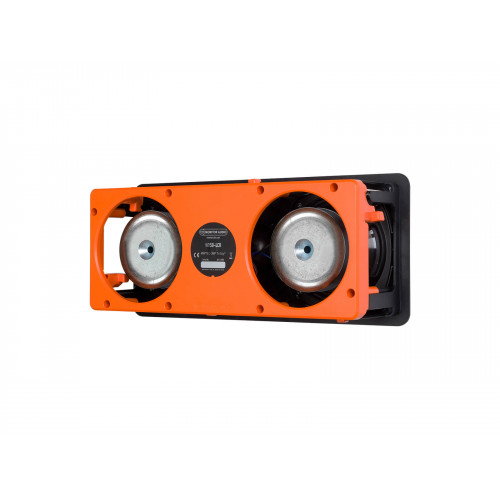

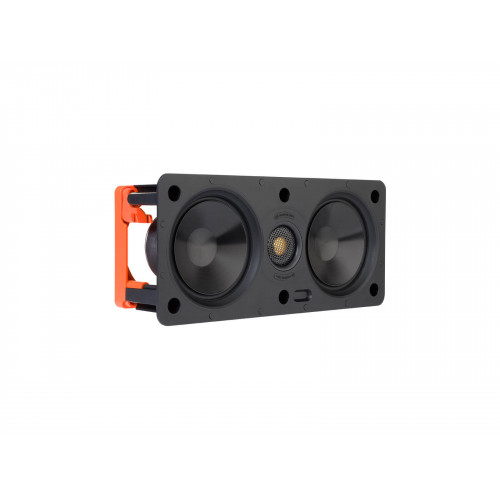

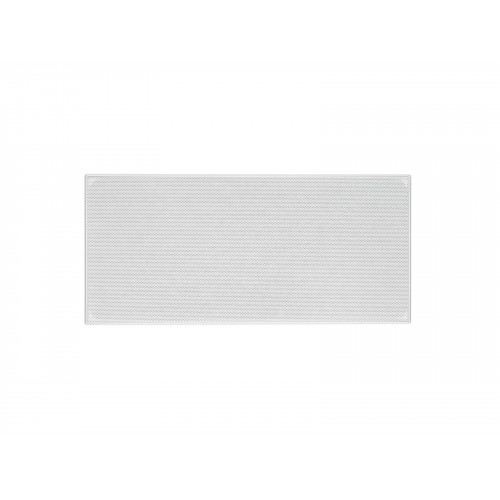

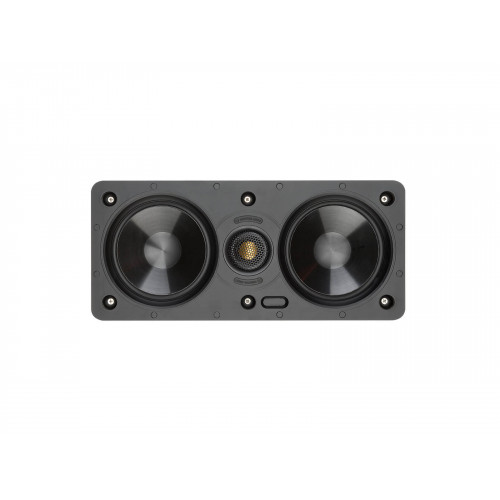

Wall-mounted speaker system Monitor Audio Core W150-LCR

Specifications

• Recommended Amplifier Requirements 30 – 100 W
• Construction Material Mineral filled ABS, RoHS compliant
• Power Handling (RMS) 100 W
• Adjustment control N/A
• Nominal Impedance 8 ohms
• Sold As Single Unit
• Pre-Construction Bracket WB5LCR Pre-Construction Bracket (Yellow)

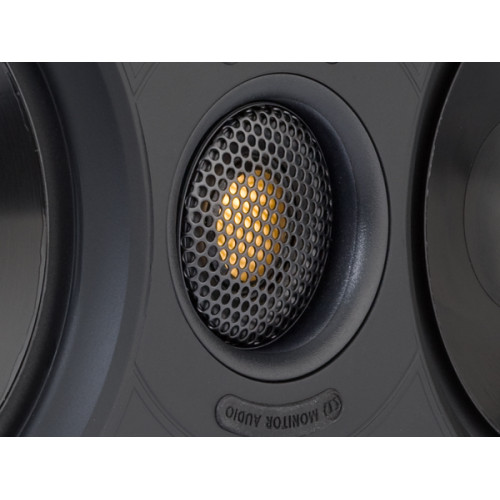

• Drive Unit Complement 2 x 5" MMP II cone bass driver1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
• Maximum SPL 108 dBA
• Sensitivity (1W@1M) 88 dB
• Mounting type Tri-Grip dog fixings
• Frequency response 60 Hz – 30 kHz

Dimensional parameters

• Overall Dimensions (Including Grille (HxWxD)) 177.4 x 385.2 mm (7 x 153/16")
• Cut-Out Dimensions 145 x 353 mm (53/4" x 137/8")Required Clearance for Doglegs in Centre Configuration 400 x 197mm (153/4" x 73/4")
• Mounting Depth 100.2 mm (315/16")
• Overall Depth (Including Grille) 105 mm (41/8")
• Weight 3.76 kg (8.3 lb)
