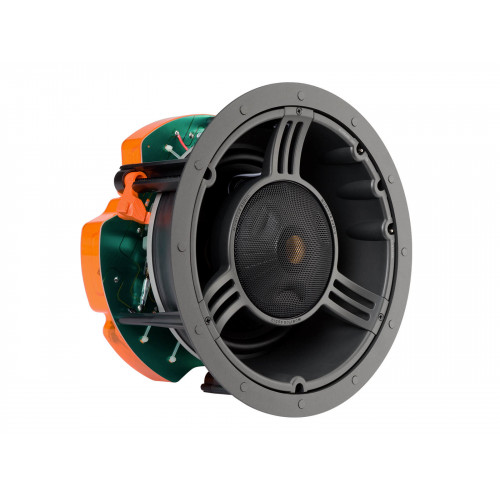

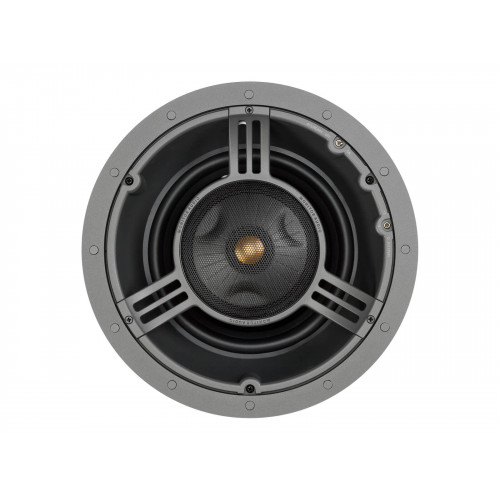

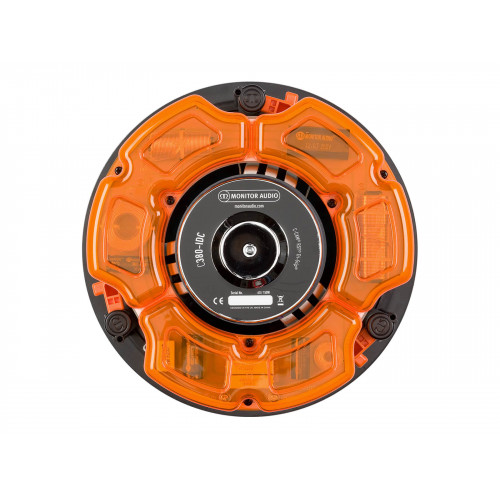

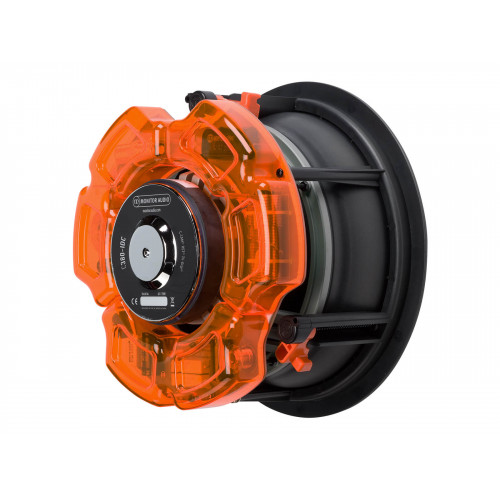

In ceiling speaker system Monitor Audio Core C380-IDC

Specifications

• Recommended Amplifier Requirements 40 – 150 W
• Construction Material Mineral filled ABS, RoHS compliant
• Power Handling (RMS) 150 W
• Adjustment control HF Level Switch (+3 dB / 0 dB / -3 dB)Boundary Compensation Switch
• Nominal Impedance 6 ohms
• Sold As Single Unit
• Back Box CMBOX-R
• Pre-Construction Bracket CB8 Pre-Construction Bracket (Green)
• Drive Unit Complement 8” C-CAM cone bass driver featuring RST pivoting IDC module housing:4” C-CAM RST inverted mid range driver1” C-CAM Gold Dome tweeter
• Maximum SPL 112 dBA
• Sensitivity (1W@1M) 90 dB
• Mounting type 3 position Tri-Grip dog fixings
• Frequency response 45 Hz – 30 kHz

Dimensional parameters

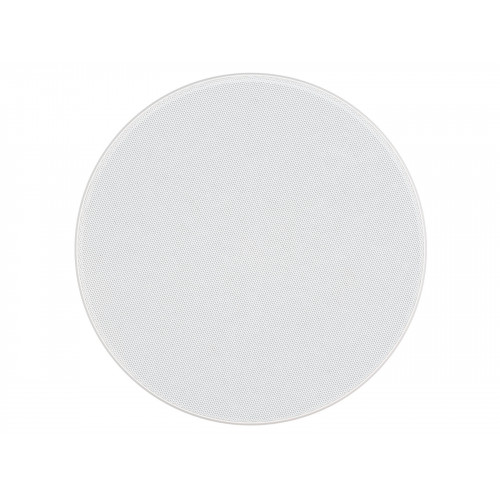

• Optional Square Grille - Outer Dimensions 285 x 285 mm (111/4")
• Mounting Depth 157 mm (63/16")
• Overall Depth (Including Grille) 161 mm (65/16")
• Overall Diameter (Including Grille) 285 mm (111/4")
• Cut-Out Hole Diameter 247 mm (93/4")
• Weight 3.64 kg (8 lb)
