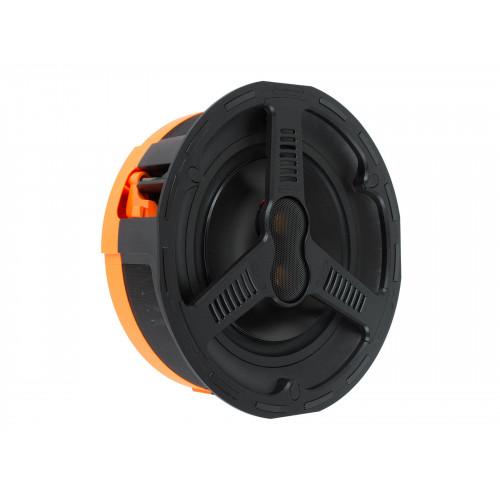

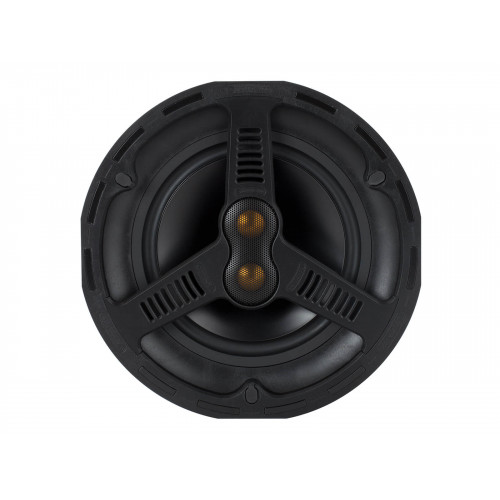

All-weather built-in speaker system Monitor Audio AWC280-T2

AWC280-T2

Pre-Order

Optional square grille can be used with this model.

This product is now available to use with home theatre design software, The CEDIA Designer. Read more.

High Performance C-CAM bass and high frequency drivers

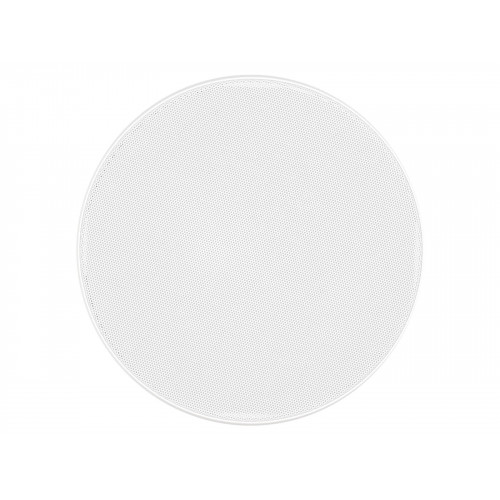

Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation

Specifications

Recommended Amplifier Requirements 20 — 100 W
Construction Material Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Power Handling (RMS) 100 W
Grille SS430 Stainless Steel
Drivers 8" C-CAM cone bass driver2 x 1" C-CAM Gold Dome tweeters (fixed angle)
Adjustment control HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Nominal Impedance 8 + 8 ohms
Sold As Single Unit
Back Box CCBOX-R|CMBOX-R
Pre-Construction Bracket CB8 Pre-Construction Bracket (Green)
Connection 2 x (2 pairs) Gold plated push style terminal
Maximum SPL 109 dBA
Operating Temperature Range -34° to 79° C -29° to 174° F
Sensitivity (1W@1M) 88 dB (both channels driven)
Magnets Samarium Cobalt
Mounting type 3 position Tri-Grip dog leg fixings
Frequency response 50 Hz — 30 kHz
